GN / GNS (2 pole)

Industrial Relay

Features: 8A switching capability; Low height: 15.7 mm; 5kV dielectric strength (between coil and contacts); Plastic sealed and flux proofed types available; Sockets are available for pairing; UL insulation system: Class F available; Environmental friendly product (RoHS compliant)

Industrial Contril

Automation Equipment System

Household Electrical Appliance
Intelligent Home Solution
Meter
Temperature control system for electical machines
Servo drive
Smartlights Tester, etc.

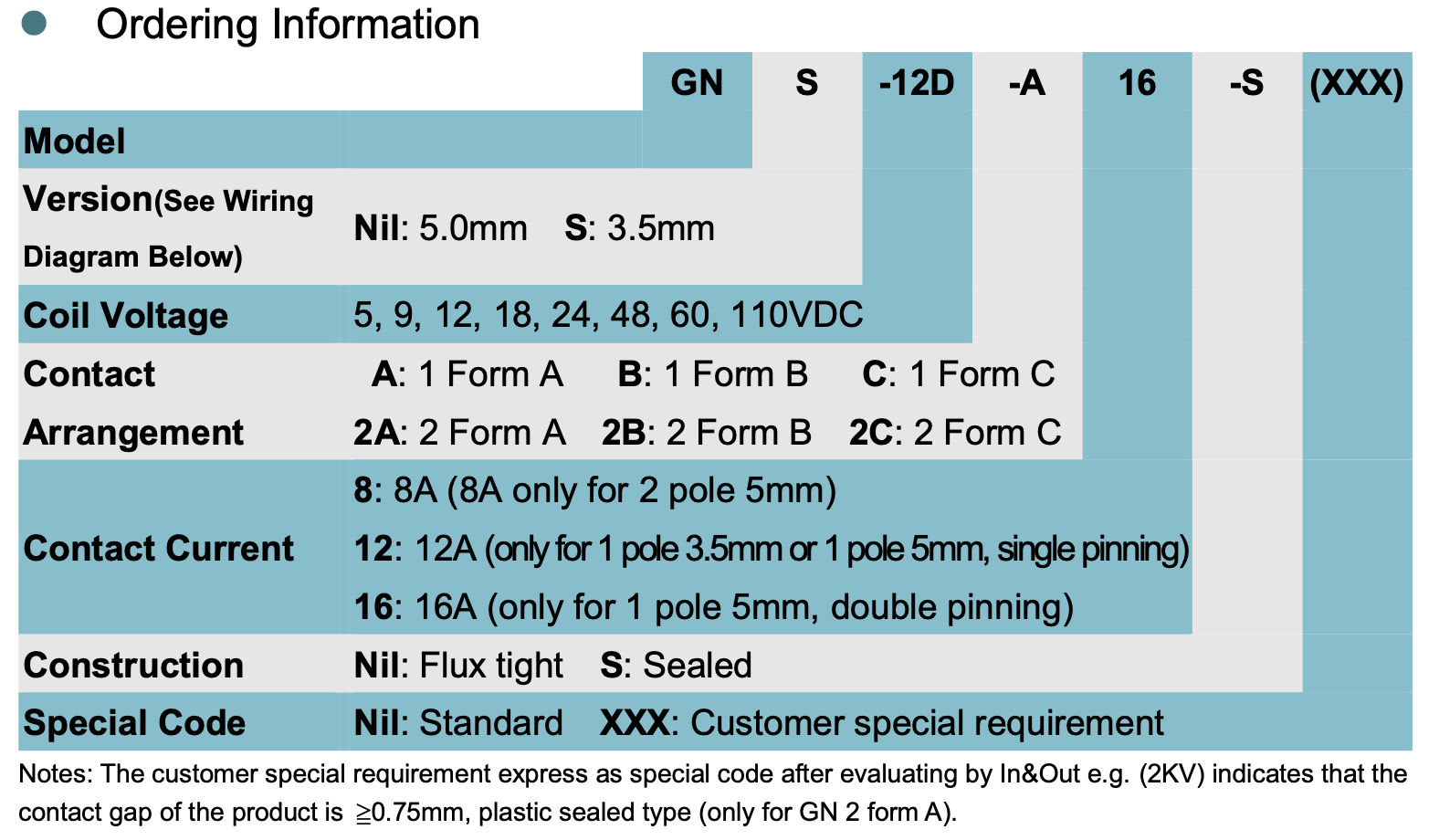

Add Inquiry (0) GN/GNS (2pole) Relay Spec

Model: GN/GNS (2pole)

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 5~110VDC Contact Arrangement: 2A, 2B, 2C Contact Material: Ag Alloy Contact Rating: 8A 250VAC (resistive) Coil Power Consumption: Approx. 0.4W Max. Switching Power: 2000VA Max. Switching Voltage: 440VAC Max. Switching Current: 8A Weight: Approx. 13.5g Qualification: VDE, UL / CUL, CQC
Dimensions (mm)	29.0 × 12.7 × 15.7
