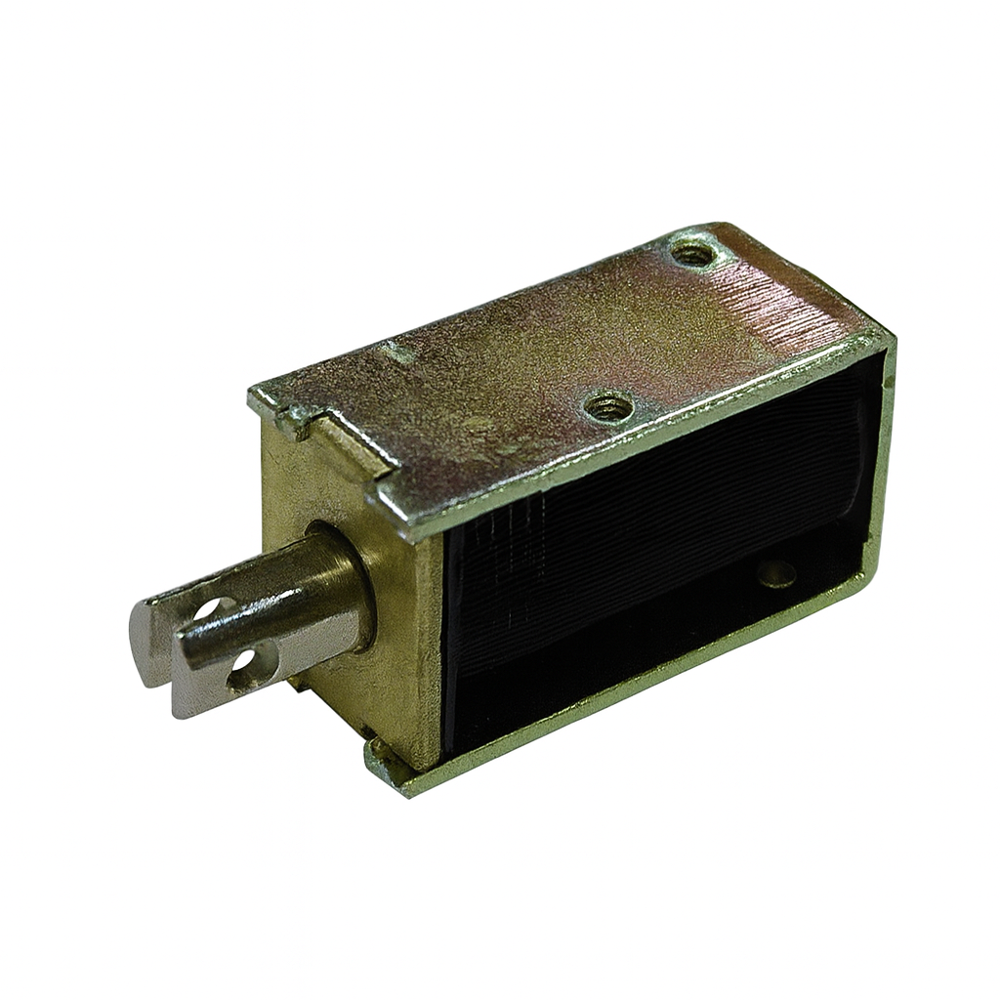

OPEN FRAME TYPE
SO-0520
Open Frame Type- Features
- Low Power Consumption with High Magnetic Flux Design:
- The SO-0520 Series operates continuously at 20°C with only 1.6W power consumption, delivering 300 Ampere-Turns of magnetic force. In intermittent mode (10% duty cycle), performance increases to 16W / 948 Ampere-Turns — achieving both energy efficiency and strong magnetic output.
- Wide Multi-Voltage Range: Available in 6V, 12V, 24V, and 48V versions with resistance ranging from 23Ω to 1440Ω and winding turns from 1150 to 9000, providing flexible integration with various DC control systems or PLC outputs.
- Compatible with Continuous and Intermittent Operation: 100% (Continuous): 1.6W / 300 AT (for long-duration holding); 50%: 3.2W / 424 AT (max. ON time 50 sec); 25%: 6.4W / 600 AT (max. ON time 18 sec); 10%: 16W / 948 AT (max. ON time 2 sec); Supports multi-stage duty cycle settings, allowing flexible adjustment of magnetic output according to application requirements.
- High-Efficiency Coil Construction: Wound with high-permeability wire and precision coil winding, ensuring stable magnetic flux density with low temperature rise.
- Compact and Reliable Design: Lightweight and durable structure with long service life and fast response, ideal for applications requiring long energization periods or frequent actuation cycles.
Application
The SO-0520 Series Solenoid is designed for compact automation, fluid control, and precision electronic mechanisms, including:
• Solenoid valve and gate control modules
• Electronic locks, access control, and release devices
• Ejector mechanisms in vending or ticketing machines
• Home appliances and fluid control systems (e.g., coffee machines, water dispensers)
• Miniature actuators for medical and testing equipment
• Driver modules for PLC or control board output stages
SO-0520 Series Electromagnet | Low Power, High Efficiency, Continuous / Intermittent Operation
▍Coil Data
| Model | Voltage (V) | Resistance (Ω @20°C) | Coil Turns |
|---|---|---|---|
| SO-0520-6V | 6 | 23 | 1150 |
| SO-0520-12V | 12 | 90 | 2290 |
| SO-0520-24V | 24 | 360 | 4500 |
| SO-0520-48V | 48 | 1440 | 9000 |
▍Duty Cycle vs Output
| Duty Cycle | Max. ON Time (Sec) | Power (W @20°C) | Magnetic Output (Ampere-Turns) |
|---|---|---|---|
| 100% (Continuous) | ∞ | 1.6 | 300 |
| 50% | 50 | 3.2 | 424 |
| 25% | 18 | 6.4 | 600 |
| 10% | 2 | 16 | 948 |
▍Coil Voltage / Overdrive
| Model | 100% | 50% | 25% | 10% |
|---|---|---|---|---|
| SO-0520-6V | 6 | 8.5 | 12 | 19 |
| SO-0520-12V | 12 | 17 | 24 | 38 |
| SO-0520-24V | 24 | 34 | 48 | 76 |
| SO-0520-48V | 48 | 68 | 96 | 152 |
▍Features
- Ultra-low power: only 1.6W continuous, minimizing heat while ensuring long life.
- Supports both continuous and intermittent duty; peak force up to 948 AT.
- Four voltage options (6V / 12V / 24V / 48V) for easy integration with PLC/controllers.
- Precisely matched resistance & turns for stable flux and temperature control.
- Compact and efficient—ideal for long-duration, frequent-cycle applications.
▍Applications
- Miniature solenoid valves, gates/diverters, positioning control
- Electronic locks, access control and security modules
- Printers, ticketing/billing/vending mechanisms
- Home appliances & coffee machines (small fluid valves)
- Medical & test instruments (micro-actuation and clamping)
▍Description
The SO-0520 series is a low-power, high-efficiency electromagnet. At 20°C it delivers 300 AT with only 1.6W in continuous duty, and can switch to 50%/25%/10% intermittent modes—3.2W / 6.4W / 16W—for higher peak force up to 948 AT. Covering 6–48V, the coils—e.g., 6V: 23Ω / 1150 turns; 48V: 1440Ω / 9000 turns—are precisely matched to balance flux and temperature rise, making it ideal for long-running automation and precision mechanisms.
