OPEN FRAME TYPE

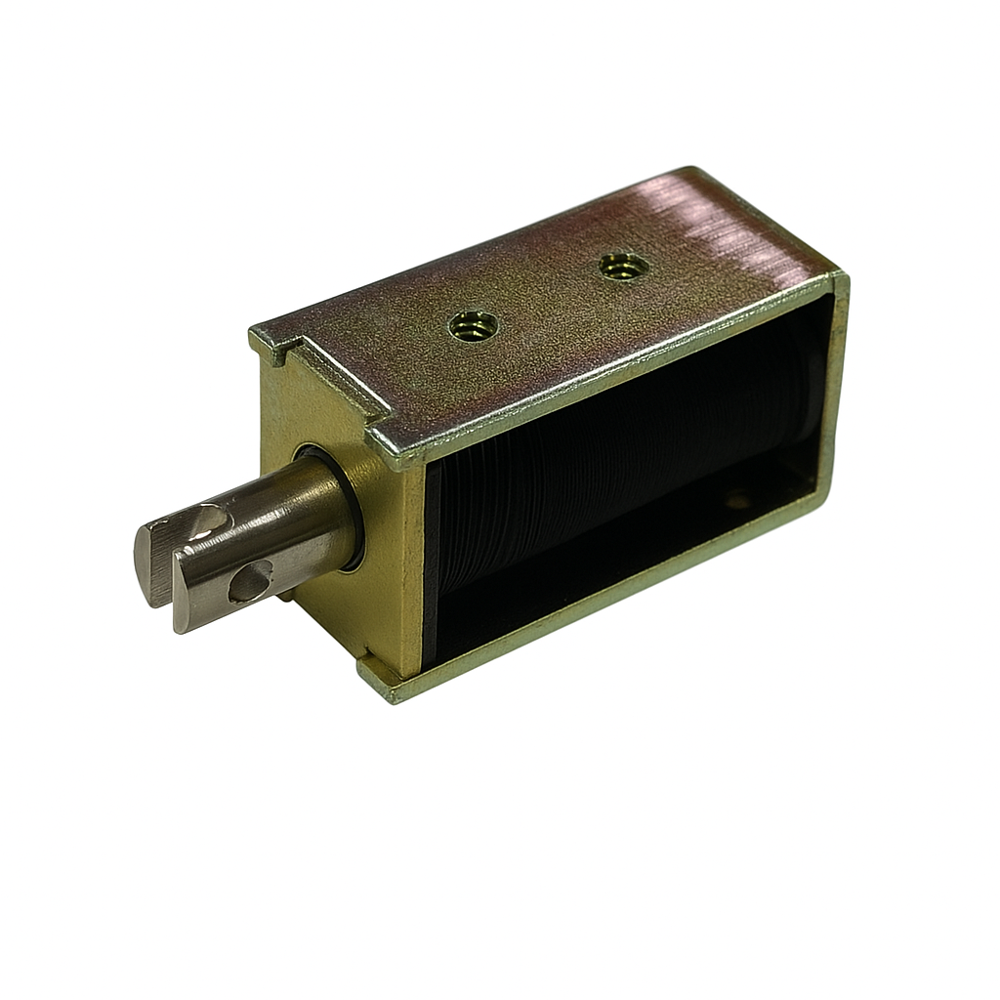

SO-0530
Open Frame Type- Features
- High Magnetic Flux Output and Stable Performance: The SO-0530 operates continuously at 20°C with only 1.7W power consumption, generating 348 Ampere-Turns of magnetic force. Under intermittent mode (10% duty cycle), power increases to 17W with a peak magnetic force of 1102 AT, providing both steady holding and strong instantaneous attraction.
- Multiple Voltage Options: Available in 6V, 12V, and 24V models with coil resistance ranging from 21.2Ω to 339Ω and winding turns from 1230 to 4916, accommodating a wide variety of electrical control system designs.
- Dual Operation Modes — Continuous and Intermittent: 100% (Continuous): 1.7W / 348 AT (long-duration holding); 50%: 3.4W / 493 AT (max. ON time 50 sec); 25%: 6.8W / 696 AT (max. ON time 18 sec); 10%: 17W / 1102 AT (max. ON time 2 sec); Supports multi-level magnetic output control, balancing energy efficiency and actuation strength.
- Compact and Low-Heat Design: Constructed with high-permeability materials and precision coil winding technology, ensuring excellent energy efficiency and thermal performance.
- High Reliability and Long Service Life: Delivers stable electrical characteristics and mechanical durability, ideal for long-term and high-frequency actuation applications.
Application
The SO-0530 Series Solenoid is suitable for various compact automation and electronic control systems, including:
• Solenoid valve and pneumatic component control
• Door lock, release mechanisms, and access control modules
• Ejecting and positioning systems in vending or ticketing machines
• Actuators and clamping modules in industrial automation equipment
• Actuation modules for medical devices or testing instruments
• Electromagnetic components driven by PLC outputs or electronic control boards
SO-0530 Series Electromagnet | High Flux Output, Durable, Continuous / Intermittent Duty
▍Coil Data
| Model | Voltage (V) | Resistance (Ω @20°C) | Coil Turns |
|---|---|---|---|
| SO-0530P-6V | 6 | 21.2 | 1230 |
| SO-0530P-12V | 12 | 84.7 | 2456 |
| SO-0530P-24V | 24 | 339 | 4916 |
▍Duty Cycle vs Output
| Duty Cycle | Max. ON Time (Sec) | Power (W @20°C) | Magnetic Output (Ampere-Turns) |
|---|---|---|---|
| 100% (Continuous) | ∞ | 1.7 | 348 |
| 50% | 50 | 3.4 | 493 |
| 25% | 18 | 6.8 | 696 |
| 10% | 2 | 17 | 1102 |
▍Coil Voltage / Overdrive
| Model | 100% | 50% | 25% | 10% |
|---|---|---|---|---|
| SO-0530P-6V | 6 | 8.5 | 12 | 19 |
| SO-0530P-12V | 12 | 17 | 24 | 38 |
| SO-0530P-24V | 24 | 34 | 48 | 76 |
▍Features
- High flux design: delivers 348 AT at only 1.7W continuous operation.
- Supports continuous and intermittent duty, peak magnetic force up to 1102 AT.
- Three voltage versions (6V / 12V / 24V) for easy system integration.
- Optimized coil resistance and turns for low heat rise and stable magnetic density.
- Compact, efficient, and durable — ideal for automation and high-cycle operation.
▍Applications
- Solenoid valves and pneumatic control systems
- Electronic locks, access control, and release units
- Ticketing/vending actuators and positioning modules
- Industrial automation clamping or actuation systems
- Medical and testing equipment micro-actuators
▍Description
The SO-0530P series offers high flux output with low power consumption. Operating at 20°C, it provides 348 AT with 1.7W continuously, and up to 1102 AT in 10% intermittent mode (17W). With 6V / 12V / 24V options, precise coil winding ensures stable flux and thermal balance, making it a reliable choice for industrial automation, access systems, and precision mechanisms.
