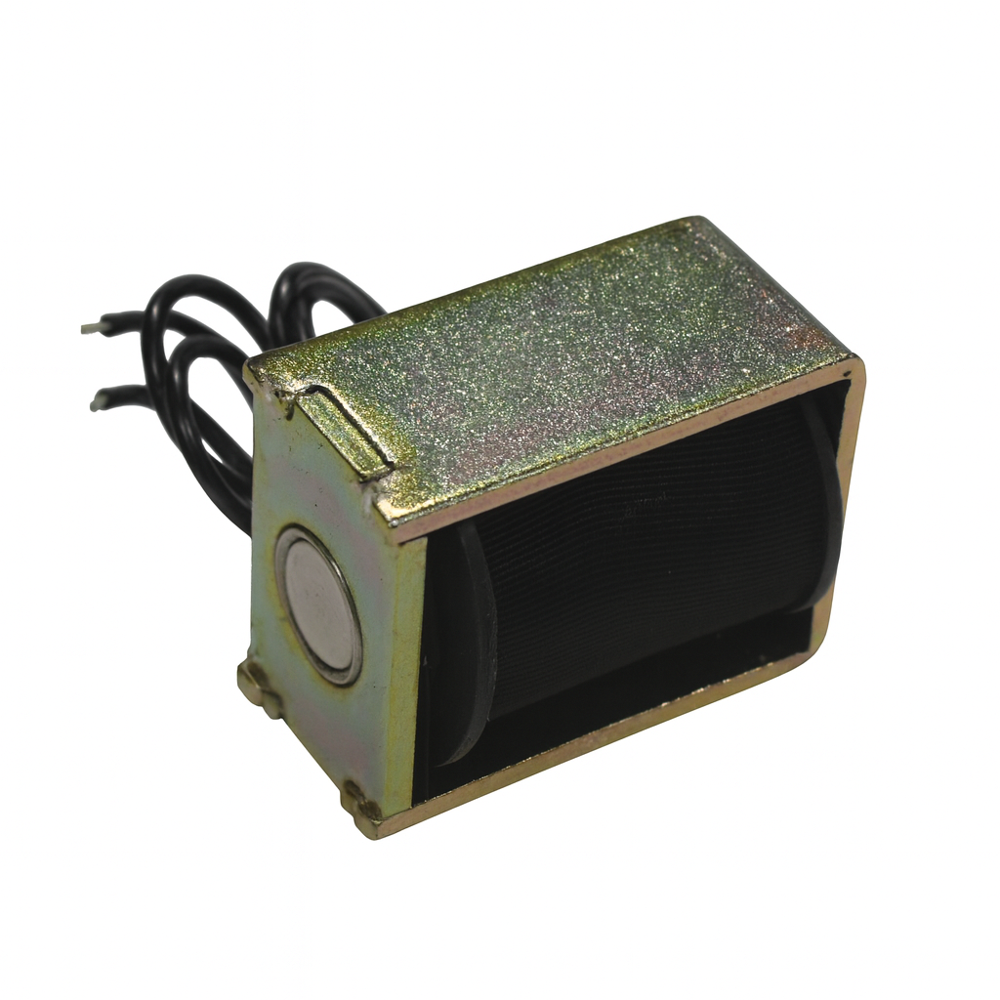

OPEN FRAME TYPE
SO-0832
Open Frame Type- Features
- High Magnetic Output & Strong Force – Delivers 571 AT at only 3W continuous operation and up to 1805 AT at 10% intermittent duty, ensuring powerful and reliable actuation.
- Multi-duty Operation – Supports 100% continuous and 50% / 25% / 10% intermittent duty cycles for flexible balance between force and heat.
- Multiple Voltage Options (6V / 12V / 24V / 48V) – Compatible with DC and PLC control systems.
- Low Heat & Long Service Life – Resistance 12–743Ω and coil turns 1150–8410 ensure optimized flux density and efficient heat dissipation.
- Rugged & Reliable Construction – Built with high-permeability core and heat-resistant insulation for long-term, high-frequency operation.
Application
• Automation Systems: Solenoid valves, pneumatic actuators, industrial clamping tools.• Access & Security Systems: Electronic locks, release mechanisms, safety latches.
• Industrial Control Modules: PLC-driven actuators, positioning devices, force controllers.
• Commercial Equipment: Ticket dispensers, vending machines, ejector mechanisms.
• Appliances & Fluid Control: Coffee machines, water purifiers, valve actuation.
• Medical & Test Devices: Micro actuators, precision testing fixtures, lab instruments.
SO-0832 Series Electromagnet | High Flux Output, Continuous / Intermittent Duty
▍Coil Data
| Model | Voltage (V) | Resistance (Ω @20°C) | Coil Turns |
|---|---|---|---|
| SO-0832-6V | 6 | 12 | 1150 |
| SO-0832-12V | 12 | 46 | 2300 |
| SO-0832-24V | 24 | 186 | 4430 |
| SO-0832-48V | 48 | 743 | 8410 |
▍Duty Cycle vs Output
| Duty Cycle | Max. ON Time (Sec) | Power (W @20°C) | Magnetic Output (Ampere-Turns) |
|---|---|---|---|
| 100% (Continuous) | ∞ | 3.0 | 571 |
| 50% | 100 | 3.0 | 807 |
| 25% | 36 | 12.0 | 1142 |
| 10% | 7 | 30.0 | 1805 |
▍Coil Voltage / Overdrive
| Model | 100% | 50% | 25% | 10% |
|---|---|---|---|---|
| SO-0832-6V | 6 | 8.5 | 12 | 19 |
| SO-0832-12V | 12 | 17 | 24 | 38 |
| SO-0832-24V | 24 | 34 | 48 | 76 |
| SO-0832-48V | 48 | 68 | 96 | 152 |
▍Features
- High magnetic output: 571 AT at only 3W continuous; up to 1805 AT at 10% duty.
- Supports 100% continuous and 50%/25%/10% intermittent modes to balance force vs. heat.
- Four voltage options (6V / 12V / 24V / 48V) for easy DC/PLC integration.
- Coils rated 12–743Ω and 1150–8410 turns for strong flux with controlled temperature rise.
- Rugged, low-heat design for long life and high-cycle operation.
▍Applications
- Solenoid/pneumatic valve actuation and fluid-control modules
- Electronic locks, access-control releases, safety latches
- Automation clamps, positioning modules, PLC-driven actuators
- Ticketing/vending ejectors and sorting/dispensing devices
- Appliances (coffee/water systems) small valve control
- Medical & test instruments for micro-actuation and holding
▍Description
Built with high-permeability materials and precision winding, the SO-0832 series delivers 571 AT at 3.0W in continuous duty. In 50% / 25% / 10% intermittent modes, it operates at 3.0 / 12.0 / 30.0W with magnetic output up to 807 / 1142 / 1805 AT. Covering 6–48V, its carefully matched coil parameters maintain flux density while controlling temperature rise—ideal for automation, access, and precision control applications.
