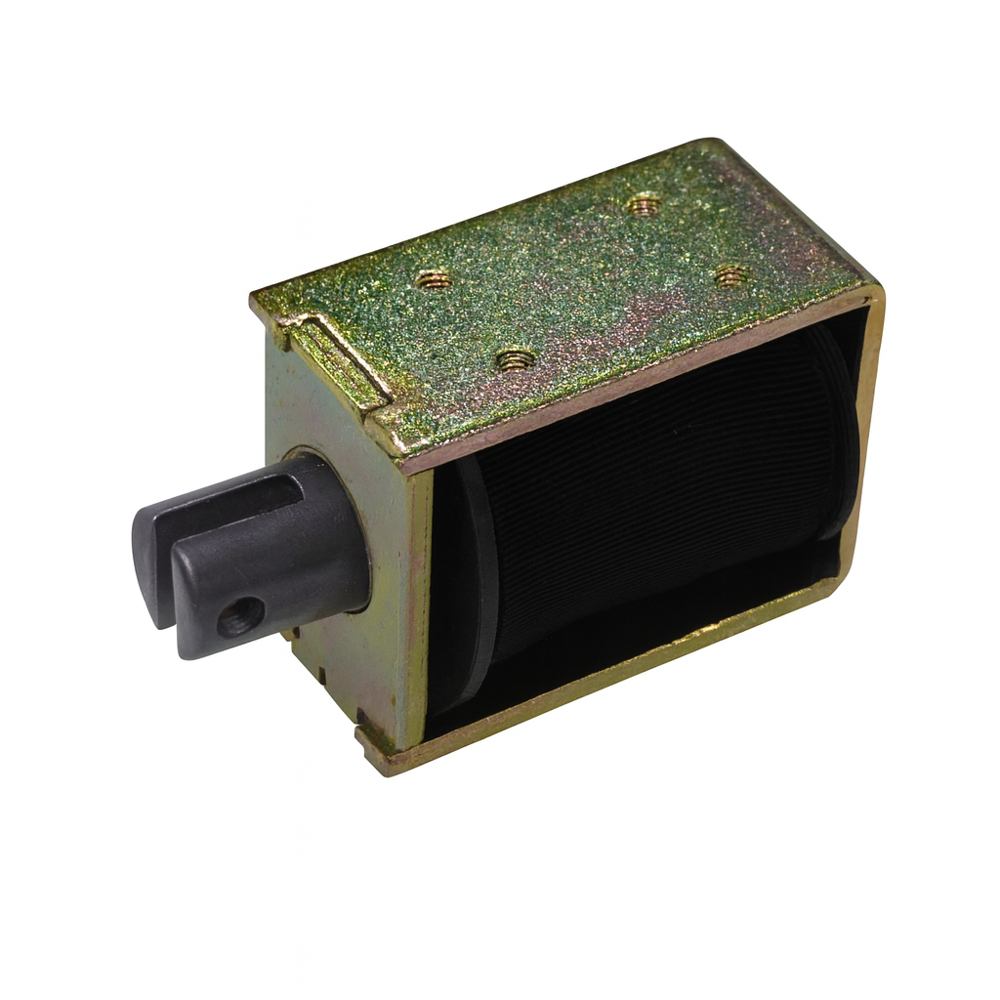

OPEN FRAME TYPE

SO-1040

Open Frame Type
Features
High Magnetic Flux and Strong Pulling Force Performance: The SO-1040 Series utilizes high-permeability materials and optimized coil design, achieving 655 Ampere-Turns with only 4.2W power consumption under 20°C continuous operation. In intermittent mode (10% duty cycle), it delivers up to 2077 AT — providing both stable holding force and powerful instantaneous attraction.
Supports Multi-Level Duty Cycle Operation: Operates flexibly between 100% continuous and 50% / 25% / 10% intermittent modes, balancing long-duration holding stability with high short-term output performance.
Multiple Voltage Options (6V / 12V / 24V / 48V): Compatible with a wide range of DC control systems and PLC modules for easy integration into automation equipment.
High-Efficiency Coil Construction: Coil resistance ranges from 8.6Ω to 548Ω with 940–7500 turns, providing high magnetic flux density and excellent heat dissipation — minimizing temperature rise and extending service life.
High Reliability and Durable Design: Built with heat-resistant insulation materials and reinforced frame construction, offering vibration resistance and long operational life — ideal for high-frequency actuation and continuous-duty applications.
Add Inquiry (0)
Added to Inquiry list.
SO-1040

TSO-1040 Series Electromagnet | High Flux Output, Continuous / Intermittent Duty

▍Coil Data

Model Voltage (V) Resistance (Ω @20°C) Coil Turns
TSO-1040-6V68.6940
TSO-1040-12V1234.31875
TSO-1040-24V241373750
TSO-1040-48V485487500

▍Duty Cycle vs Output

Duty Cycle Max. ON Time (Sec) Power (W @20°C) Magnetic Output (Ampere-Turns)
100% (Continuous)∞4.2655
50%1408.4930
25%5016.81312
10%9422077

▍Coil Voltage / Overdrive

Model 100% 50% 25% 10%
TSO-1040-6V68.51219
TSO-1040-12V12172438
TSO-1040-24V24344876
TSO-1040-48V486896152

▍Features

  • High magnetic output: 655 AT at only 4.2W continuous; up to 2077 AT at 10% duty.
  • Supports 100% continuous and 50% / 25% / 10% intermittent duty for flexible force vs. heat trade-offs.
  • Four voltage options (6V / 12V / 24V / 48V) for easy DC/PLC integration.
  • Precisely matched coils (8.6–548Ω / 940–7500 turns) for strong flux with controlled temperature rise.
  • Compact, low-heat, and reliable design for long-life, high-cycle operation.

▍Applications

  • Solenoid/pneumatic valve actuation and fluid-control modules
  • Electronic locks, access-control releases, safety latches
  • Automation clamps, positioning modules, PLC-driven actuators
  • Ticketing/vending ejectors and sorting/dispensing devices
  • Appliances (coffee/water systems) small valve control
  • Medical & test instruments for micro-actuation and holding

▍Description

Built with high-permeability materials and precision winding, the TSO-1040 series delivers 655 AT at 4.2W in continuous duty. Switching to 50% / 25% / 10% modes, it operates at 8.4 / 16.8 / 42W with peak magnetic output up to 930 / 1312 / 2077 AT. Covering 6–48V, its carefully matched coil parameters maintain flux density while controlling temperature rise—ideal for automation, access, and precision-control applications.
