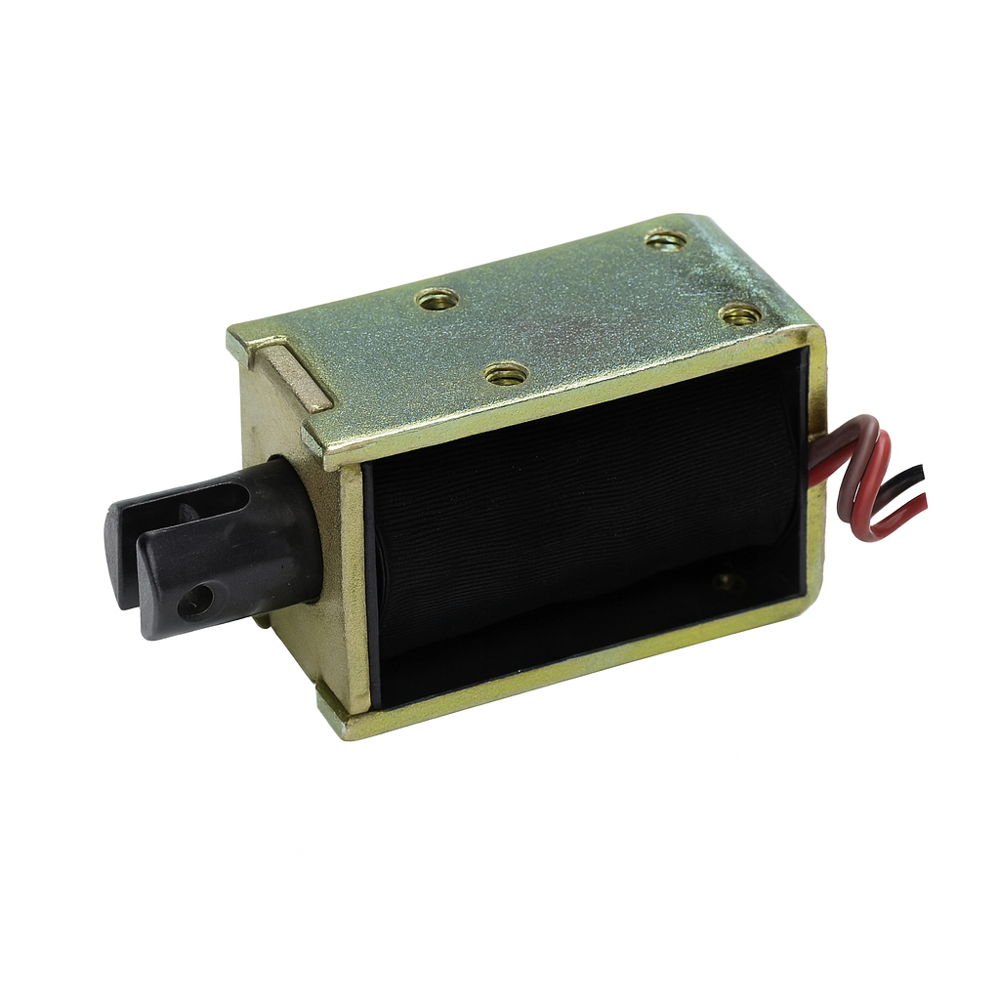

OPEN FRAME TYPE
SO-0730
Open Frame Type- Features
- High Magnetic Force Output and Stable Performance: The SO-0730 Series features powerful magnetic flux capability, operating at only 2.2W under continuous use at 20°C to deliver 358 Ampere-Turns. In intermittent mode (10% duty cycle), output increases to 22W / 1134 AT, achieving both stable holding force and strong instantaneous actuation performance.
- Multi-Voltage Design: Available in 6V, 12V, 24V, and 48V versions to meet various application and control system integration requirements.
- Excellent Thermal Management: With coil resistance ranging from 16.4Ω to 1047Ω and winding turns between 979 and 7809, it maintains high magnetic flux density while effectively controlling temperature rise.
- Supports Continuous and Intermittent Operation: Compatible with multiple duty cycle modes: 100% (Continuous): 2.2W / 358AT (long-duration holding); 50% (Intermittent): 4.4W / 507AT; 25%: 8.8W / 716AT; 10%: 22W / 1134AT (max. ON time 3 sec); Allows flexible switching between steady magnetic holding and high peak pull-in force according to operational needs.
- Compact and Highly Reliable Structure: Constructed with a high-permeability core and enhanced insulation design, providing low power consumption, excellent heat resistance, and long service life — ideal for high-frequency operation environments.
Application
The SO-0730 Series Solenoid is suitable for various automation and industrial control applications requiring stable holding force and fast response, including:
• Automation equipment: solenoid valve control, pneumatic valve switching modules, and robotic arm grippers.
• Access control and security systems: electronic locks, door release mechanisms, and safety latches.
• Industrial actuation and clamping devices: positioning modules, magnetic brakes, and PLC-driven actuator outputs.
• Commercial equipment: ticketing machines, vending machines, dispensing, and sorting mechanisms.
• Home appliances and small devices: coffee machine valve assemblies and water dispensing valve control.
• Medical and testing instruments: miniature actuators, sample positioning, and electromagnetic release systems.
SO-0730 Series Electromagnet | High Magnetic Force, Low Power, Continuous / Intermittent Operation
▍Coil Data
| Model | Voltage (V) | Resistance (Ω @20°C) | Coil Turns |
|---|---|---|---|
| SO-0730-6V | 6 | 16.4 | 979 |
| SO-0730-12V | 12 | 65.5 | 1954 |
| SO-0730-24V | 24 | 262 | 3908 |
| SO-0730-48V | 48 | 1047 | 7809 |
▍Duty Cycle vs Output
| Duty Cycle | Max. ON Time (Sec) | Power (W @20°C) | Magnetic Output (Ampere-Turns) |
|---|---|---|---|
| 100% (Continuous) | ∞ | 2.2 | 358 |
| 50% | 55 | 4.4 | 507 |
| 25% | 19 | 8.8 | 716 |
| 10% | 3 | 22 | 1134 |
▍Coil Voltage / Overdrive
| Model | 100% | 50% | 25% | 10% |
|---|---|---|---|---|
| SO-0730-6V | 6 | 8.5 | 12 | 19 |
| SO-0730-12V | 12 | 17 | 24 | 38 |
| SO-0730-24V | 24 | 34 | 48 | 76 |
| SO-0730-48V | 48 | 68 | 96 | 152 |
▍Features
- Delivers 358 AT at only 2.2W continuous; up to 1134 AT at 10% duty.
- Available in 6V / 12V / 24V / 48V for easy DC/PLC integration.
- Precisely matched resistance & turns (16.4–1047Ω / 979–7809 turns) for strong flux with controlled heat rise.
- Supports continuous and intermittent operation for both holding and high-force actuation.
- Compact, low-heat, and reliable for high-cycle environments.
▍Applications
- Solenoid/pneumatic valve switching and fluid-control units
- Electronic locks, access control and safety latches
- Automation fixtures, positioning modules, PLC-driven actuators
- Vending/ticketing pushers and sorting/dispensing mechanisms
- Appliances and compact actuators (e.g., coffee machine valves)
- Medical & test instruments for micro-actuation and holding
▍Description
Engineered with high-permeability materials and precision winding, the SO-0730 series delivers 358 AT at 2.2W in continuous duty, and—when switched to 50% / 25% / 10% modes— operates at 4.4 / 8.8 / 22W with peak force up to 1134 AT. Covering 6–48V, its carefully matched coil parameters maintain flux density while controlling temperature rise, making it ideal for automation, access, and precision-control applications.
